IOM16800



          Product Model: IOM16800

          Overview:

          IOM16800 uses the mainstream ARM kernel 32 bit microprocessor, Modbus RTU and BACnet MS/TP supports two protocols (choose one), can realize the rapid expansion of I/O module controller.



          Protocol specification:

          1.Modbus support RTU protocol, can quickly realize the controller with the support of the implementation of the protocol of network connection, fast I/O port expansion. Please refer to the specific use of the Modbus RTU test tools.
          2.BACnet support MS/TP protocol, can quickly realize the controller with the support of the implementation of the protocol of network connection, fast I/O port expansion. Please refer to the specific use of the BACnet MS/TP test tools.



          Main Parameter:



 Processor 32 bit
 Clock Frequency  72MHZ
 Memory  64KB flash, 20KB random access memory
 Power  DC/AC 24V
 Communication

 Modbus RTU(2.4k/4.8k/9.6k/19.2k)
BACnet MS/TP(9.6k/19.2k/38.4k/76.8k)

 Digital Input  Support dry contact input
 Digital Output  Support 24VDC  <3A















          Model specification:

 Product Model

BI/DI

BO/DO

AI

 AO

 IOM16800

 16

8

0

0

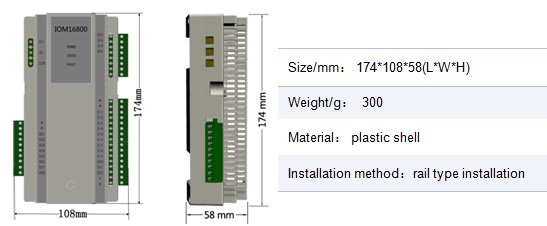

          Product display :




          Register definition specification:
          1.Modbus RTU corresponding register

              BI/DI---Input Status(0x02)

BI/DI Register Address

BI/DI

Instruction

10001

 1

Digital Input Port

10002

 2

 Digital Input Port

10003

 3

 Digital Input Port

 10004

4

Digital Input Port

 10005

5

Digital Input Port

 10006

6

Digital Input Port

 10007

7

Digital Input Port

 10008

8

Digital Input Port

 10009

9

Digital Input Port

 10010

10

Digital Input Port

 10011

11

Digital Input Port

 10012

 12

 Digital Input Port

 10013

 13

Digital Input Port

 10014

 14

Digital Input Port

 10015

 15

Digital Input Port

 10016

 16

 Digital Input Port











































              BO/DO—Coil Status(0x01/0x05)

BO/DO Register Address

BO/DO

Instruction

00001

 1

Digital Output Port

00002

 2

Digital Output Port

00003

 3

Digital Output Port

 00004

4

Digital Output Port

 00005

5

Digital Output Port

 00006

6

Digital Output Port

 00007

 7

 Digital Output Port

 00008

 8

 Digital Output Port























                        AO—Holding Register(0x03/0x06)

AO Register Address

AO

Instruction

40001

-

Device address 1
(1-127)

40002

-

baud rate 9600
(19200/9600/4800/2400)

40003

-

Parity bit without
(0- no /1- odd /2-even)





















          2.BACnet MS/TP corresponding register

              BI/DI

BI/DI Register Address

BI/DI

Instruction

0

 1

Digital Input Port

1

 2

 Digital Input Port

2

 3

 Digital Input Port

 3

4

Digital Input Port

4

5

Digital Input Port

5

6

Digital Input Port

6

7

Digital Input Port

7

8

Digital Input Port

8

9

Digital Input Port

9

10

Digital Input Port

10

11

Digital Input Port

 11

 12

 Digital Input Port

 12

 13

 Digital Input Port

 13

 14

 Digital Input Port

 14

 15

 Digital Input Port

 15

 16

 Digital Input Port









































              BO/DO

,

BO/DO Register Address

BO/DO

Instruction

0

 1

Digital Output Port

1

 2

Digital Output Port,

2

 3

Digital Output Port

3

4

Digital Output Port

4

5

Digital Output Port

5

6

Digital Output Port

 6

 7

 Digital Output Port

 7

 8

 Digital Output Port























                          AV

AV Register Address

AV

Instruction

0

-

baud rate 38400
(76800/38400/19200/9600)









          Common Question

          1.ModbusRTU common question::

          Q ① : What is the default communication parameter for the module?
          A ① : ModbusRTU module default communication parameters are baud rate 9600, data bit 8, stop bit 1, no checksum, device default ID number is 1.
          Q ② : How to modify the communication parameters of the module?
          A ② : The use of third party software tool ModbusPoll, the control of the 3 register definition Instruction "section 40001, 40002, 40003, read three register data sequentially represents the device address, baud rate, parity check, modify according to" Instruction ", a list of parameters, communication module. After the power is restarted, the set parameters become effective.



          2.BACnet MSTP commnon question:

          Q ①:What is the default communication parameter for the module?
          A ①:BACnet MSTP module default communication parameters are baud rate 38400, data bit 8, stop bit 1, no checksum, device default ID number is 1.
          Q ②:How to modify the device number (i.e. address) of the module?
          A ②:Computer connected to the module of A, B port through the USB 485 communication lines, using BACnetScan tool from Shanghai Sunfull to scan the module point, right click  your device (e.g. Device,1), select "Change Device ID", you can modify the module device number (i.e., address).
