Product Model: HMI1002-ARM-SMS ( DIN-Rail Mount)
Function Description：
HMI1002-ARM-SMS SMS Alarm Gateway is equipped with 1 Ethernet port and 2 RS485 serial ports, featuring dynamic support for 512 data points and compatibility with over 500 industrial protocols for data acquisition. This device operates as both a BACnet IP server and Modbus TCP server, while providing open HTTP web services for seamless integration with third-party systems. Additionally, it offers dual-mode alarm delivery through SMS text messages and voice call notifications.The gateway is configured using the X2View software. Users can configure it based on the point list of existing devices, convert it to standard BACnet IP or Modbus RTU/TCP, and upload it to the hardware gateway. BACnet/Modbus clients can then access the data of field devices through the gateway. Note: For this gateway, the Modbus register addresses on the collection side start from 1 in decimal (Base1) and from 0 in hexadecimal (Base0); while on the forwarding side, the base addresses of Modbus registers all start from 1 (Base1).
Application Field：
The IoT gateway is applied in building automation systems or industrial fields to connect Modbus RTU devices. It resolves the issue of integrating non-BACnet devices with building control configuration software such as Johnson Controls' Metasys, Honeywell's EBI or Niagara, Siemens' Insight or Desigo CC, and Schneider's EBO. Additionally, it addresses the integration of serial Modbus RTU devices, such as PLC, DDC, thermostat, elevator, HVAC system, UPS, fire Alarm, smart lighting, electricity meter, water meter, etc., with configuration software like Citect, IFIX, RSVIEW, WinCC, Kingview, and ForceControl via the Modbus TCP protocol over Ethernet.
Runtime environment：
OS：Win 7, Win8, Win10, Win11, Win Server 2008, Win Server 2016, and more.
Browser： Google Chrome, Microsoft Edge, Apple's Safari, Firefox, Opera, and 360 Speed Mode.
Register Type:
Number of Registers is dynamic, each register can be builded up to 512 points.

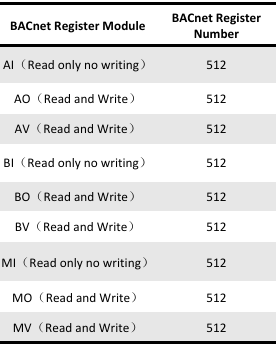

Supported BACnet type and number are shown below.

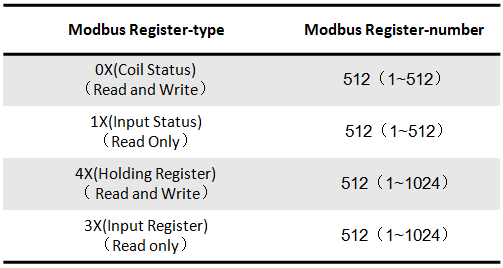

Supported Modbus type and number are shown below.
【Notes】
1.4X and 3X register address = transfer register address *2+1
0X and 1X register address = transfer register address +1
2. The data type of 4X and 3X can only be Float
Software Features：
-Supports SIM card insertion and full-network 4G connectivity;;
-Support convert 500+ protocols to Modbus, BACnet and OPC UA;
-Support sending alarms via SMS, Phone Call;
-Open HTTP web service for integration with third-party systems;
-Support easy remote viewing and control within the local area network via mobile phone, iPad, and PC;
-X2View software is easy configuration, with 512 points configurable within 15 minutes;
Application Principle Diagram
Product Size
