Product Model: HMI1001-ARM ( DIN-Rail Mount)
Function Description：
IoT gateway HMI1001-ARM (with 1x Ethernet port, 1x RS485 serial port, dynamically supporting 256 points) is capable of collecting data from Modbus RTU/TCP and more than 500 protocols, and simultaneously forwarding it to Modbus, BACnet, OPC UA, MQTT and IEC61850 server. It also features WeChat, SMS platform, DingTalk, Email, FeiShu, WhatsApp, Telegram, Viber, and LINE Alarm, and the ability to upload engineering projects to the cloud. IoT gateway is configured using the X2View software.
Users can configure it based on the existing equipment's point list, converting it into standard BACnet IP or Modbus RTU/TCP, and then uploading it to the hardware gateway. BACnet/Modbus clients can then access the data from the field devices through the gateway.
(Note: For this gateway, the Modbus register addresses on the collection side start from 1 in decimal (Base1) and from 0 in hexadecimal (Base0); while on the forwarding side, the base addresses for Modbus registers all start from 1 (Base1).)
Application Field：
IoT gateway is applied in building automation systems or industrial fields to connect Modbus RTU devices. It resolves the issue of integrating non-BACnet devices with building control configuration software such as Johnson Controls' Metasys, Honeywell's EBI or Niagara, Siemens' Insight or Desigo CC, and Schneider's EBO. Additionally, it addresses the integration of serial Modbus RTU devices, such as PLC, DDC, thermostat, elevator, HVAC system, UPS, fire Alarm, smart lighting, electricity meter, water meter, etc., with configuration software like Citect, IFIX, RSVIEW, WinCC, Kingview, and ForceControl via the Modbus TCP protocol over Ethernet.
Runtime environment：
OS：Win 7, Win8, Win10, Win11, Win Server 2008, Win Server 2016, and more.
Browser： Google Chrome, Microsoft Edge, Apple's Safari, Firefox, Opera, and 360 Speed Mode.
Register Type:
Note: The number of register points is dynamically supported, with a total limit of up to 256 points.

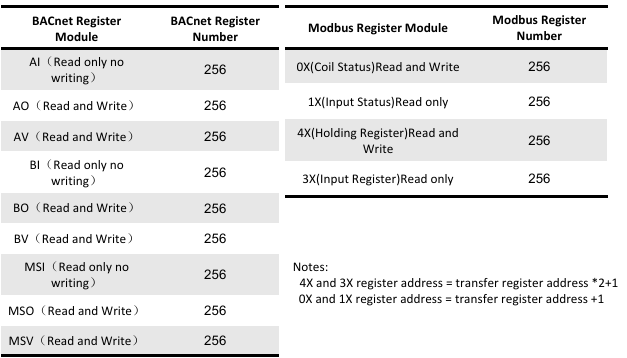

The BACnet/Modbus register types and maximum number of points supported are shown in the table below.
Software Features：
-Support convert 500+ protocols to Modbus, BACnet, OPC UA, MQTT and IEC61850 server;
-Support both local and cloud configuration for remote data monitoring;
-HTML5 configuration pages meet the customization needs of different customers;
-Support MQTT services and project uploads to the cloud;
- Support Graphic programming, JS and PLC hybrid programming, schedule-based control, triggers, user management, and user permissions;
-Support sending alarms via WeChat, SMS platform, DingTalk, Email, FeiShu, Telegram, Viber, and LINE;
- Support storage in external databases such as MySQL, SQL Server, and InfluxDB;
- Open HTTP web service for integration with third-party systems;
- Support easy remote viewing and control within the local area network via mobile phone, iPad, and PC;
- Add a new private protocol, which can be completed within two weeks.

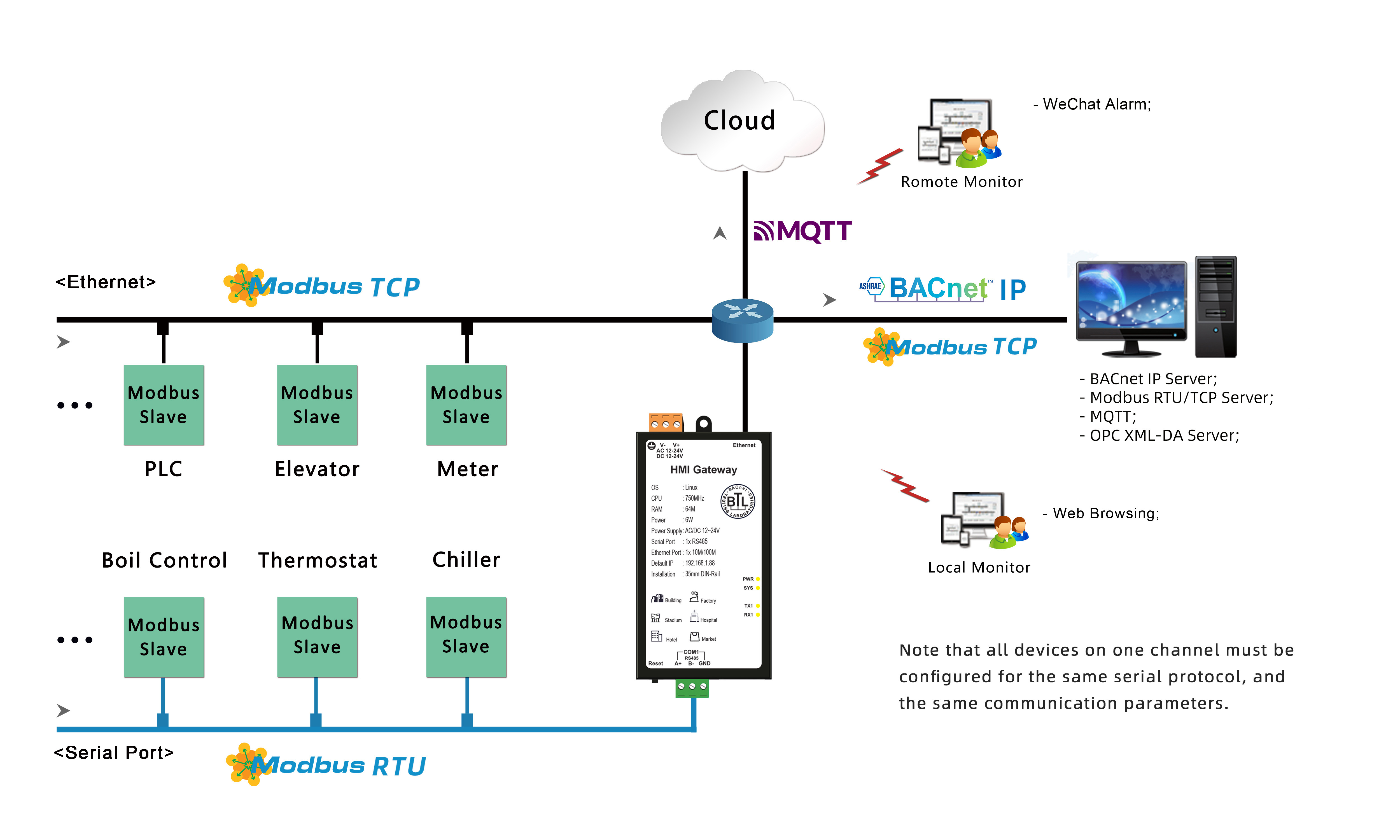

Application Principle Diagram

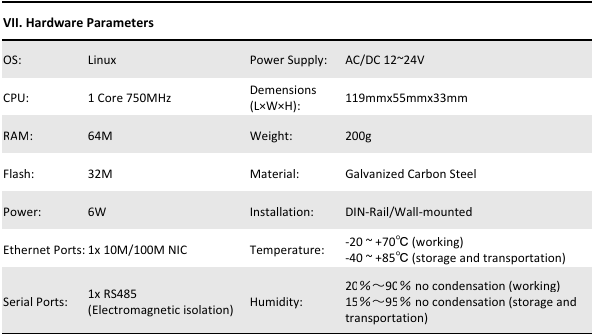

Product Size
