N8400



          Product Model: N8400

          Overview:

         This product uses the mainstream ARM kernel 32 bit microprocessor, Modbus TCP and UDP supports two protocols (choose one), can realize the rapid expansion of I/O module controller.



          Protocol specification:

          Modbus support Modbus TCP/UDP protocol, can quickly realize the controller with the support of the implementation of the protocol of network connection, fast I/O port expansion. Please refer to the specific use of the Modbus RTU test tools.



          Main Parameter:



 Processor 32 bit
 Clock Frequency  72MHZ
 Memory  64KB flash, 20KB random access memory
 Power  DC 24V
 Communication

 Modbus RTU(2.4k/4.8k/9.6k/19.2k)
BACnet MS/TP(9.6k/19.2k/38.4k/76.8k)

 Digital Input  Support dry contact input
 Digital Output  Support 24VDC  <3A













          Model specification:

 Product Model

BI/DI

BO/DO

AI

 AO

 N8400

 8

 4

 0

 0

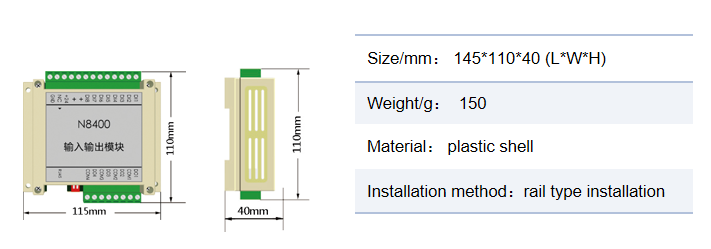

          Product display :




          Register definition specification:
          1.Modbus TCP/UDP corresponding register

              BI/DI---Input Status(0x02)

BI/DI Register Address

BI/DI

Instruction

10001

 1

Digital Input Port

10002

 2

 Digital Input Port

10003

 3

 Digital Input Port

 10004

4

Digital Input Port

 10005

5

Digital Input Port

 10006

6

Digital Input Port

 10007

7

Digital Input Port

 10008

8

Digital Input Port

























              BO/DO—Coil Status(0x01/0x05)

BO/DO Register Address

BO/DO

Instruction

00001

 1

Digital Output Port

00002

 2

Digital Output Port

00003

 3

Digital Output Port

 00004

4

Digital Output Port















              AO—Holding Register(0x03/0x06)

AO Register Address

AO

Instruction

40001

-

Device address 1
(1-127)

40002

-

baud rate 9600
(19200/9600/4800/2400)

40003

-

Parity bit without
(0- no /1- odd /2-even)

















          Common Question:

          1.ModbusTCP common question:

          Q① : What is the default communication parameter for the module?
          A ① : The default IP of ModbusTCP module is 192.168.1.88, port number 502.
          Q ② : How to modify the module's IP address?
          A② : In the browser input module IP enters the backstage web page to modify IP.

          Q③: If forgot IP , how to restore IP?

          A③: In the case of power supply, dial the red dial key 2 to NO and reset, then restart after power failure. IP will revert to the default factory IP.
