Product overview
Configure the device point list in X2View and upload the project to the gateway. Acquisition is limited to Modbus RTU.
Selection and reading guide
- Acquisition is limited to Modbus RTU.

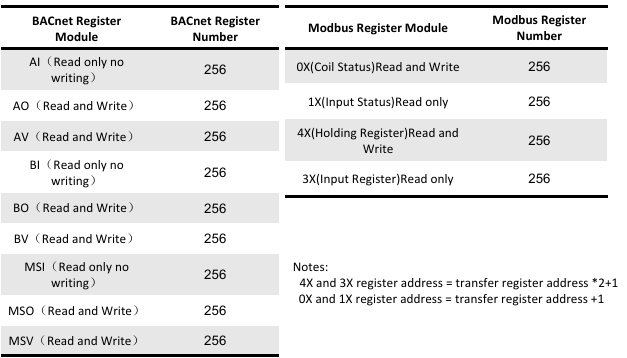

- Before mapping points, read the Modbus address-base notes on page 3; acquisition decimal/hexadecimal addresses and forwarding addresses use different stated bases.
Model document guide
- File unavailable in this language; purpose and functions: page 3; specification references: pages 2, 3, 5
Current product specifications
Specifications are sourced from the supplied 2026 product catalog. Unspecified values remain unconfirmed.
| Parameter | Specification |
|---|---|
| Total serial ports | 2 |
| RS485 ports | 2 |
| Ethernet ports | 1 |
| Point capacity | 512 |
| Device capacity | 64 |
| Acquisition protocols | Modbus RTU |
| Forwarding protocols | BACnet / Modbus / MQTT / OPC UA |
| Acquisition roles | Modbus RTU Client |
| Forwarding roles | BACnet Server / Modbus Server / MQTT Server / OPC UA Server |
| Physical interfaces | Ethernet / RS485 |
Use the acquisition scope listed above for this model. If older documents show a broader list, use the current model specifications and check hardware interfaces, forwarding protocols and edition requirements separately.
Model datasheets
- File unavailable in this language
